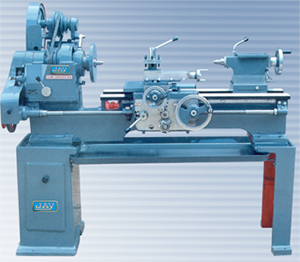

| Light Duty Precision Lathe Detail : |
| |
| Model No. JL 1 to 2 4'-6" & 6' -00" |
| |
| TECHNICAL SPECIFICATION OF LIGHT DUTY PRECISION LATHE MACHINE |
| |
| DESCRIPTION |
MODEL NO. JL 1 |
MODEL NO. JL 2 |
| LENGTH OF BED |
1370 MM (4'-6") |
1830 MM (6'-00") |
| MAX. A.B. CENTER |
685 MM (27") |
1145 MM (45") |
| MAX.SWING OVER BED |
305 MM (12") |
305 MM (12") |
| MAX. SWING WITHOUT GAP |
480 MM (19") |
480 MM (19") |
| MAX. SWING OVER CROSS SLIDE |
178 MM (7") |
178 MM (7") |
| HEIGHT OF CENTER OVER FLATE BED WAYS |
165 MM (6.1/2") |
165 MM (6.1/2") |
| WIDTH OF BED |
240 MM (9.1/2") |
240 MM (9.1/2") |
| SPINDLE HOLE |
40 MM (1.1/2") |
40 MM (1.1/2") |
| NO. OF SPINDLE SPEEDS & RANGE |
8 (35 TO 800 RPM) |
8 (35 TO 800 RPM) |
| LEAD SCREW DIA. & PITCH |
25 MM (1" Х 4" TPI) |
25 MM (1" X 4" TPI) |
| TAPPER OF CENTER IN HEAD AND TAIL STOCK |
MT-3 |
MT-3 |
| NO. OF METRIC THREADS AND RANGE |
(0.5 TO 7 MM PITCH) 21 |
(0.5 TO 7 MM PITCH) 21 |
| NO. OF INCH THREADS AND RANGE |
(4 TO 48 TPI) 29 |
(4 TO 48 TPI) 29 |
| POWER OF AC. MOTOR 3 P.H. (1440 RPM) |
1 H.P. |
1 H.P. |
| APPROX WEIGHT IN K.G |
460 KG |
540 KG |
| Standard ACC : 8" chuck plate , Change gear set of (INCH and MM ) Two NOS. Dead centre , One NO. Centre adapter , Motor pulley , Tool post key. |
| |
| Extra Standard & Electrical ACC : Stady rest , Face plate , Chuck electric motor , RE. switch , Motor V-belt |
|
