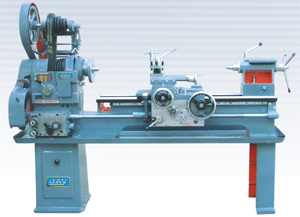

| Medium Duty Precision Lathe Detail : |
| |
| Model No. JM 1 to 2 4'-6" & 6' -00" |
| |
| TECHNICAL SPECIFICATION OF MEDIUM DUTY PRECISION LATHE MACHINE |
| |
| DESCRIPTION |
MODEL NO. JM 1 |
MODEL NO. JM 2 |
| LENGTH OF BED |
1370 MM (4'-6") |
1830 MM (6'-00") |
| MAX. A.B. CENTER |
508 MM (20") |
965 MM (38") |
| MAX.SWING OVER BED |
381 MM (15") |
381 MM (15") |
| MAX. SWING WITHOUT GAP |
610 MM (24") |
610 MM (24") |
| MAX. SWING OVER CROSS SLIDE |
203 MM (8") |
203 MM (8") |
| HEIGHT OF CENTER OVER FLATE BED WAYS |
215 MM (8.1/2") |
215 MM (8.1/2") |
| WIDTH OF BED |
280 MM (11") |
280 MM (11") |
| WIDHT OF GAP IN FRONT OF FACE PLATE |
127 MM(5") |
127 MM(5") |
| SPINDLE HOLE |
50 MM (2") |
50 MM (2") |
| NO. OF SPINDLE SPEEDS & RANGE |
6 (30 TO 500 RPM) |
6 (30 TO 500 RPM |
| LEAD SCREW DIA. & PITCH |
32MM (1.1" Х 4") 4 TPI |
32MM (1.1" Х 4") 4 TPI |
| TAPPER OF CENTER IN HEAD AND TAIL STOCK |
MT-4 |
MT-4 |
| NO. OF METRIC THREADS AND RANGE |
(0.5 TO 7 MM PITCH) 21 |
(0.5 TO 7 MM PITCH) 21 |
| NO. OF INCH THREADS AND RANGE |
(4 TO 48 TPI) 29 |
(4 TO 48 TPI) 29 |
| V-BELT DRIVE |
DOUBLE V-BELT "B" |
DOUBLE V-BELT "B" |
| POWER OF AC. MOTOR 3 P.H. (1440 RPM) |
1.5 H.P. OR 2 H.P |
.1.5 H.P. OR 2 H.P |
| APPROX WEIGHT IN K.G |
700 KG |
800 KG |
| Standard ACC : 8" chuck plate , Change gear set of (INCH and MM ) Two NOS. Dead centre , One NO. Centre adapter , Motor pulley , Tool post key. |
| |
| Extra Standard & Electrical ACC : Stady rest , Face plate , Chuck electric motor , RE. switch , Motor V-belt |
|
